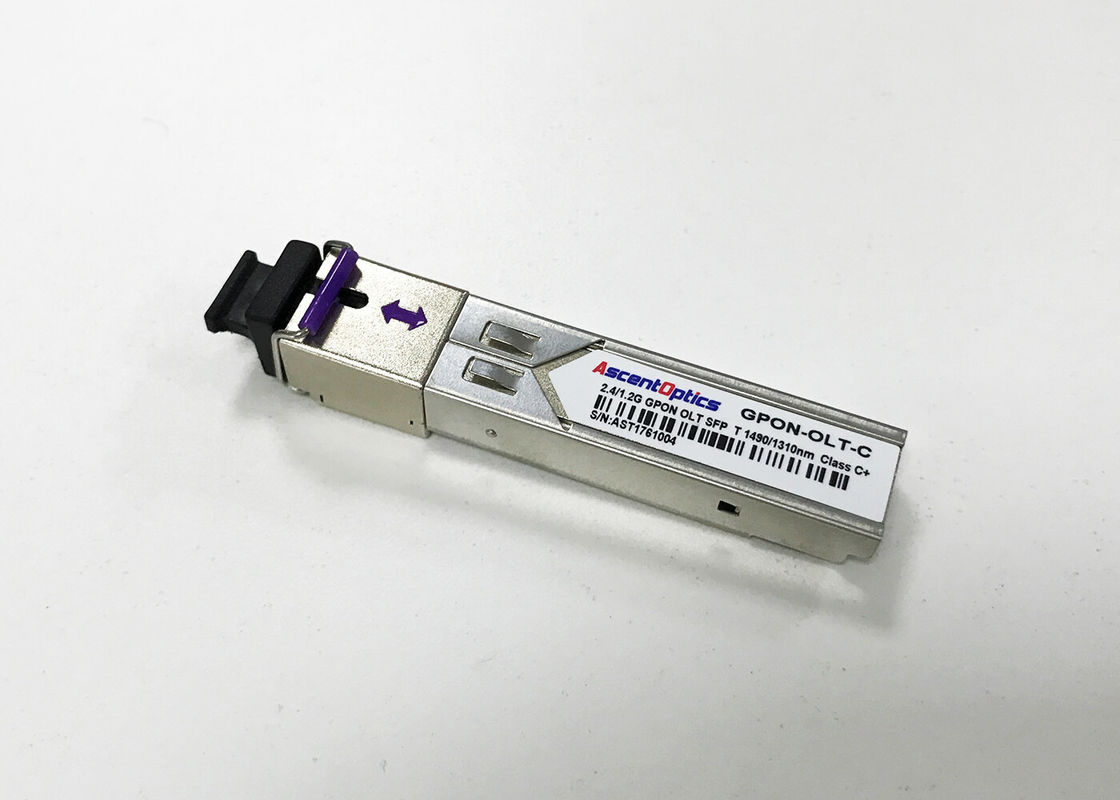

GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector

GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector

    • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
    • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
    • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector
  • GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector

    उत्पाद विवरण:

    Place of Origin: Shenzhen,China
    ब्रांड नाम: AscentOptics/ Neuter, OEM
    प्रमाणन: CE/FCC/RoHS/TUV/UL
    Model Number: GPON-OLT-C

    भुगतान & नौवहन नियमों:

    Minimum Order Quantity: 1PCS
    Packaging Details: 10 or 20PCS /Plastic tray, 1PC/Gift box
    Delivery Time: Within 1-3 working days after PO confirmed
    Payment Terms: T/T, Western Union, L/C
    Supply Ability: 50,000pcs/Month
    अब से संपर्क करें
    विस्तृत उत्पाद विवरण
    P/N: GPON-OLT-C Distance: 20KM
    Wavelength: Tx1490nm / Rx1310nm Aplication: Gigabit Ethernet Passive Optical Networks /FTTx
    Media: SMF Connector: SC



    GPON OLT sfp bidirectional transceiver Class C+ Tx 1490nm Rx 1310nm 20KM SC Connector


    Specification:





    Features:



    Single fiber bi-directional data links asymmetric TX 2.5Gbps/RX1.25bps application

    1310nm Burst-mode APD/TIA receiver and 1490nm Continuous DFB laser Transmitter (with WDM)

    SFP metallic package

    0 to 70oC operating ambient temperature

    Single SC receptacle optical interface compliant

    Hot-pluggable

    +3.3V single power supply

    Low power consumption

    Fast settling time with immunity to long steams of CID

    Digitalized burst mode optical power monitoring

    LVPECL compatible data input and output interface

    LVTTL receiver reset control

    LVTTL receiver burst-power-detect indication

    Excellent EMI and EMC characteristics

    Class 1 Laser eye safety standard

    ESD protection function

    RoHs compliant





    P/N GPON-OLT-C
    Datarate 2.488 Gbit/s downstream 1.244 Gbit/s upstream
    Wavelenth Tx1490nm / Rx1310nm
    Distance 20KM
    Transmitter DFB
    Receiver APD
    Media SMF
    Connector SC
    Application Gigabit Ethernet Passive Optical Networks (GPON) /FTTx
    Operating Temperature 0℃~ +70℃
    Voltage Supply 3.3V
    Certification CE/FCC/RoHS/TUV/UL
    Brand AscentOptics/Neuter, OEM







    Description:



    The GPON OLT Transceiver is designed for Gigabit-capable Passive Optical Network(GPON)transmission. The module incorporates 1490nm DFB continuous-mode transmitter and 1310nm burst-mode APD receiver.



    The transmitter section uses a high efficiency 1490nm DFB laser and an integrated laser driver which is designed to be class-1 eye safety under any single fault. The laser driver includes APC and temperature compensation functions, which are used for keeping the launch optical power and extinction ratio constant over temperature and aging.



    The receiver section uses an integrated APD detector and burst mode preamplifier mounted together. To provide fast settling time with immunity to long streams of Consecutive Identical Digits(CID), the receiver requires a reset signal provided by the media access controller(MAC). The receiver has fast SD function, the rising time is about 5ns, when reset signal arrived, the SD signal will be turned to low, and the noise in the guard time will be squelched.



    The receiver includes digitalized burst mode optical power monitoring function, which converses any of a received ONU optical power directly in digital, with a Trigger input from system. When rising edge of Trigger detected, the DDM processor starts a burst optical power conversion, the digital result is available via DDM interface after Burst Optical Power Conversion Time. Trigger pulse width should be more than Burst Optical Power Conversion Holding Time.











    Applications:



    Optical transceiver for Gigabit-capable Passive Optical Networks (GPON) Class C+ OLT side
